ZBLAN Bare Fiber (Rare-Earth Doped)

ZBLAN (Rare-Earth-Doped)
  • ZBLAN (Rare-Earth-Doped)

ZBLAN Bare Fiber (Rare-Earth Doped)

Listed here are our standard rare-earth-doped ZBLAN fiber products that we regularly produce. Other than these standard products, you may also choose from our inventory fibers. We also offer a custom fiber draw if you have specific requirements for your application.

Product Type : Bare Fiber

Operating Wavelength：400 nm ~4000 nm

Contact Sales

FEATURES

  • Mid-IR Transmission up to 4 micron
  • Exotic Emission Wavelengths in VIS, NIR, and MIR

APPLICATIONS

  • Scientific Research
  • Industrial Application
  • Medical Application

MAIN SPECS

Product NumberRare-Earth
Dopant		Rare-Earth
Conc.
(mol ppm)		Core
Diameter
(μm)		Core NACutoff
(nm)		1st Cladding
Diameter
(μm)		Cladding
Shape		2nd Cladding
Diameter
(μm)		Cladding
NA		Cladding
Absorption
(dB/m)
ZSF-7.0/125-N-0.20N/AN/A7.0 +/- 1.00.20 +/- 0.01
@1000nm		< 2100N/AN/AN/AN/AN/A
ZSF-7.0/125-N-0.26N/AN/A7.0 +/- 1.00.26 +/- 0.01
@1000nm		< 2750N/AN/AN/AN/AN/A
ZSF-9.0/125-N-0.20N/AN/A9.0 +/- 1.00.20 +/- 0.01
@1000nm		< 2600N/AN/AN/AN/AN/A
ZSF-9.0/125-N-0.26N/AN/A9.0 +/- 1.00.26 +/- 0.01
@1000nm		< 3450N/AN/AN/AN/AN/A
ZMF-100/125-N-0.29N/AN/A95 +/- 50.29 +/- 0.01
@1000nm		N/AN/AN/AN/AN/AN/A
ZMF-160/200-N-0.29N/AN/A160 +/- 100.29 +/- 0.01
@1000nm		N/AN/AN/AN/AN/AN/A
ZMF-400/500-N-0.29N/AN/A400 +/- 250.29 +/- 0.01
@1000nm		N/AN/AN/AN/AN/AN/A
AMF-200/240-N-0.22N/AN/A200 +/- 100.22 +/- 0.02
@1000nm		N/AN/AN/AN/AN/AN/A
AMF-440/480-N-0.22N/AN/A440 +/- 200.22 +/- 0.02
@1000nm		N/AN/AN/AN/AN/AN/A
ZDF-16/250-10E-CEr10,00016 +/- 30.12 +/- 0.02
@ 3500 nm		< 2850250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		0.3-0.8
@ 980 nm
ZDF-18/250-60E-CEr60,00018 +/- 30.12 +/- 0.02
@ 2700 nm		< 3400250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		2-3
@ 980 nm
ZDF-30/300-60E-CEr60,00030 +/- 30.12 +/- 0.02
@ 2700 nm		< 5350300 +/- 15Circular460 +/- 300.50+/- 0.02
@1000nm		4-5
@ 980 nm
ZDF-7.5/125-40T-CTm40,0007.5 +/- 1.50.14 +/- 0.02
@ 2000 nm		< 1700120 +/- 3Circular210 +/- 200.50+/- 0.02
@1000nm		1-2
@ 800 nm
ZDF-8.5/125-2H40T-CHo
Tm		2,000
40,000		8.5 +/- 2.00.14 +/- 0.02
@ 2000 nm		< 2000123 +/- 4Circular195 +/- 150.50+/- 0.02
@1000nm		1-2
@ 800 nm
ZDF-10/125-30H2.5P-CHo
Pr		30,000
2,500		10 +/- 10.17 +/- 0.02
@ 3000 nm		< 2400123 +/- 3Circular210 +/- 100.50+/- 0.02
@1000nm		1-2
@ 1150 nm
ZDF-20/250-40E2.5D-CEy
Dy		40,000
2,500		20 +/- 30.13 +/- 0.02
@ 3000 nm		< 4100250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		1-2
@ 980 nm
ZSF-3.0/125-N-0.25N/AN/A3.0 +/- 1.00.25 +/- 0.02
@1000nm		< 1350N/AN/AN/AN/AN/A
ZSF-5.0/125-N-0.20N/AN/A5.0 +/- 1.00.20 +/- 0.02
@1000nm		< 1850N/AN/AN/AN/AN/A
ZSF-5.0/125-N-0.26N/AN/A5.0 +/- 1.00.26 +/- 0.02
@1000nm		< 2400N/AN/AN/AN/AN/A
ZSF-9.0/125-N-0.19N/AN/A9.0 +/- 1.00.19 +/- 0.02
@1000nm		< 2550N/AN/AN/AN/AN/A
ZSF-2.4/125-3.2T-0.26Tm3,2002.4 +/- 0.60.26 +/- 0.02
@1000nm		< 1050N/AN/AN/AN/AN/A
ZSF-5.5/125-40T-0.20Tm40,0005.5 +/- 0.50.20 +/- 0.02
@1000nm		< 1650N/AN/AN/AN/AN/A
ZSF-6.0/125-10T-0.20Tm10,0006.5 +/- 0.50.20 +/- 0.02
@1000nm		< 1900N/AN/AN/AN/AN/A
ZSF-8.5/125-13T-0.16Tm13,0008.5 +/- 1.50.16 +/- 0.02
@1000nm		< 2150N/AN/AN/AN/AN/A
ZSF-2.1/125-1.5P-0.25Pr1,5002.1 +/- 0.50.25 +/- 0.02
@1000nm		< 900N/AN/AN/AN/AN/A
ZSF-2.0/125-2P-0.26Pr2,0002.0 +/- 0.50.26 +/- 0.02
@1000nm		< 900N/AN/AN/AN/AN/A
ZSF-4.7/125-2E-0.20Er2,0004.7 +/- 0.50.20 +/- 0.02
@1000nm		< 1450N/AN/AN/AN/AN/A
ZSF-5.5/125-5E-0.11Er5,0005.5 +/- 0.50.11 +/- 0.02
@1000nm		< 900N/AN/AN/AN/AN/A
ZSF-10/125-1H-0.16Ho1,00010 +/- 50.16 +/- 0.02
@1000nm		< 3150N/AN/AN/AN/AN/A
ZSF-2.1/125-1Y-0.25Yb1,0002.1 +/- 0.30.25 +/- 0.02
@1000nm		< 850N/AN/AN/AN/AN/A
ZSF-13/125-1D-0.16Dy1,00013 +/- 30.16 +/- 0.02
@1000nm		< 3300N/AN/AN/AN/AN/A
ZSF-14/125-3D-0.16Dy3,00014 +/- 60.16 +/- 0.02
@1000nm		< 4200N/AN/AN/AN/AN/A
ZSF-13/125-40C-0.12Ce40,00013 +/- 20.12 +/- 0.02
@1000nm		< 2350N/AN/AN/AN/AN/A
ZEF-2.2×5.5/125-NN/AN/A2.2x5.5N/A< 1500N/AN/AN/AN/AN/A
ZEF-6x10/125-NN/AN/A6x10N/A< 2000N/AN/AN/AN/AN/A
ZMF-100/125-N-0.27N/AN/A95 +/- 50.27 +/- 0.02
@1000nm		N/AN/AN/AN/AN/AN/A
ZMF-150/200-N-0.29N/AN/A145 +/- 50.29 +/- 0.02
@1000nm		N/AN/AN/AN/AN/AN/A
ZDF-10/125-N-CN/AN/A10 +/- 10.18 +/- 0.02
@2000nm		< 2600120 +/- 4Circular210 +/- 100.50+/- 0.02
@1000nm		N/A
ZDF-15/250-N-CN/AN/A15 +/- 30.12 +/- 0.02
@2700nm		< 2900250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		N/A
ZDF-18/250-N-CN/AN/A18 +/- 30.12 +/- 0.02
@2700nm		< 3400250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		N/A
ZDF-30/300-N-CN/AN/A30 +/- 30.10 +/- 0.02
@2700nm		< 4250300 +/- 15Circular460 +/- 300.50+/- 0.02
@1000nm		N/A
ZDF-3.4/125-5P-CPr5,0003.4 +/- 0.50.11 +/- 0.02
@1000nm		< 600123 +/- 3Circular210 +/- 100.50+/- 0.02
@1000nm		N/A
ZDF-4.7/125-5E-CEr5,0004.7 +/- 0.70.10 +/- 0.02
@1000nm		< 750124 +/- 3Circular200 +/- 100.50+/- 0.02
@1000nm		0.1
@ 980 nm
ZDF-15/125-60E-CEr60,00015 +/- 20.13 +/- 0.02
@2700nm		< 3050122 +/- 5Circular470 +/- 300.50+/- 0.02
@1000nm		2-3
@ 980 nm
ZDF-19/200-60E-CEr60,00019 +/- 40.13 +/- 0.02
@2700nm		< 4100200 +/- 10Circular430 +/- 300.50+/- 0.02
@1000nm		3-4
@ 980 nm
ZDF-15/250-60E-CEr60,00015 +/- 30.12 +/- 0.02
@2700nm		< 2900250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		1-2
@ 980 nm
ZDF-28/250-60E-CEr60,00028 +/- 20.13 +/- 0.02
@2700nm		< 5300250 +/- 13Circular460 +/- 300.50+/- 0.02
@1000nm		2-3
@ 980 nm
ZDF-45/250-60E-CEr60,00045 +/- 100.11 +/- 0.02
@2700nm		< 8300250 +/- 13Circular470 +/- 300.50+/- 0.02
@1000nm		3-4
@ 980 nm
ZDF-7.5/125-20T-CTm20,0007.5 +/- 1.50.14 +/- 0.02
@2000nm		< 1700120 +/- 3Circular215 +/- 100.50+/- 0.02
@1000nm		1-1.5
@ 800 nm
ZDF-7.5/125-30T-CTm30,0007.5 +/- 1.50.15 +/- 0.02
@2000nm		< 1750120 +/- 3Circular215 +/- 100.50+/- 0.02
@1000nm		1.5-2
@ 800 nm
ZDF-7.5/125-35T-CTm35,0007.5 +/- 1.50.14 +/- 0.02
@2000nm		< 1700120 +/- 3Circular215 +/- 100.50+/- 0.02
@1000nm		1.5-2
@ 800 nm
ZDF-10/125-20H-CHo20,00010 +/- 10.14 +/- 0.02
@2000nm		< 2050123 +/- 3Circular200 +/- 100.50+/- 0.02
@1000nm		1-1.5
@ 1150 nm
ZDF-10/125-30H2.5P-OHo
Pr		30,000
2,500		10 +/- 30.17 +/- 0.02
@3000nm		< 3000123 +/- 3Octagonal210 +/- 100.50+/- 0.02
@1000nm		1.5-2
@ 1150 nm
ZDF-4.5/125-13N-CNd13,0004.5 +/- 0.50.14 +/- 0.02
@1000nm		< 950123 +/- 4Circular220 +/- 300.50+/- 0.02
@1000nm		1-2
@ 800 nm
ZDF-3.0/125-33.7Tb-CTb33,7003.0 +/- 0.60.17 +/- 0.02
@1000nm		< 800123 +/- 3Circular200 +/- 100.50+/- 0.02
@1000nm		N/A
ZCLF-125-NN/AN/AN/AN/AN/A123 +/- 5Circular400 +/- 100.50+/- 0.02
@1000nm		N/A
ZCLF-250-NN/AN/AN/AN/AN/A250 +/- 10Circular470 +/- 300.50+/- 0.02
@1000nm		N/A
ACLF-125-NN/AN/AN/AN/AN/A123 +/- 5Circular210 +/- 100.35+/- 0.02
@1000nm		N/A
ACLF-250-NN/AN/AN/AN/AN/A250 +/- 13Circular470 +/- 300.35+/- 0.02
@1000nm		N/A
ACLF-300-NN/AN/AN/AN/AN/A300 +/- 20Circular470 +/- 300.35+/- 0.02
@1000nm		N/A

OTHER SPECS

Options

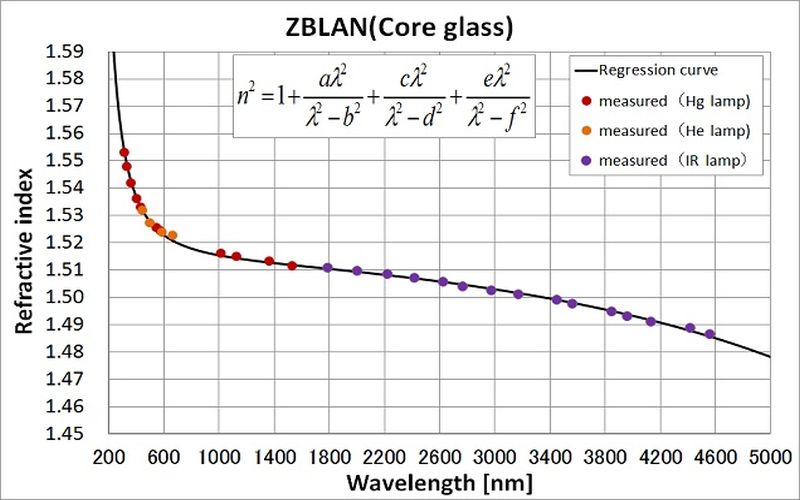

Refractive index of ZBLAN glass (for core, typical)
Refractive index of HBLAN glass (for cladding, typical)

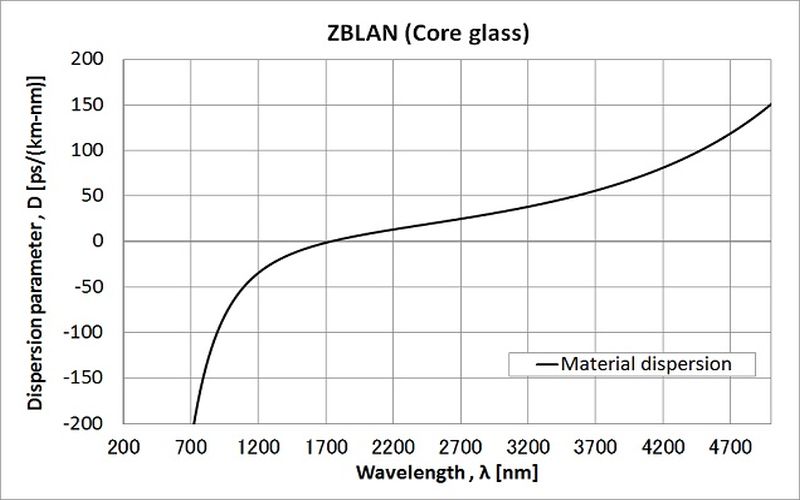

Material dispersion of ZBLAN glass (for core, typical)
Material dispersion of HBLAN glass (for cladding, typical)
