S-band amplifier (TDFA, 1U Rack Mount)

The AMP-FL52xx-SB series is S-band fiber amplifier designed to meet the need for the next generation optical communication band beyond the C-band and L-band. This S-band amplifier produces high signal gain over a wide bandwidth, covering 1460-1520nm, by utilizing propriatary fluoride fiber TDFA technology.

The rack-mout version is mainly designed for deployment in optical network. It can also be used for network experiments where footprint is an issue. It has been used for a number of hero experiments in ultra-wideband DWDM transmission, conducted by many prestigious research institutes all over the world.

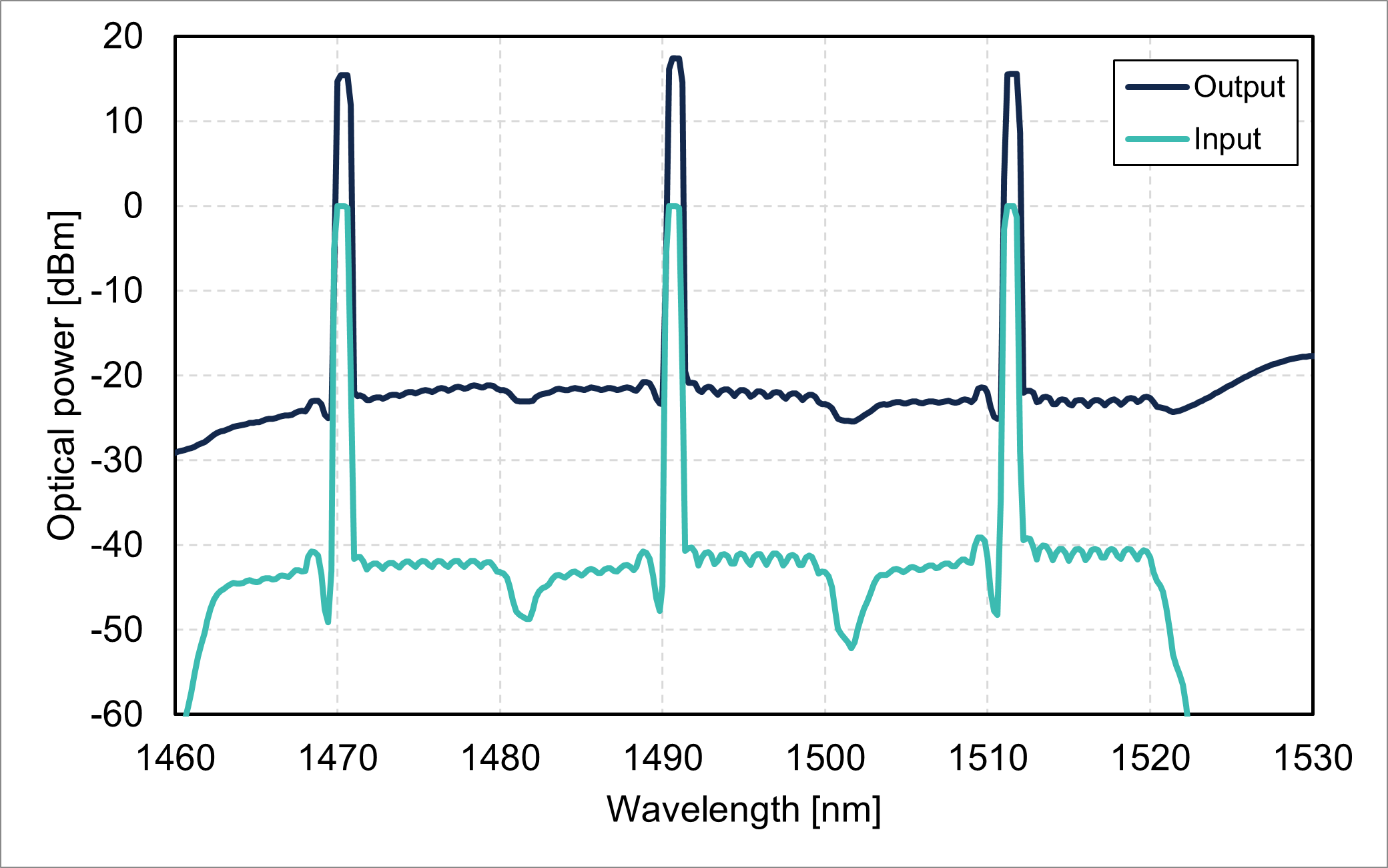

Now we also offer a gain-flattened model, AMP-FL5221-SB-19-W, primarily designed for S-band DWDM application.

Also available in bench-top and OEM module format.

Product Type : Rack Mount

Operating Wavelength：1460 nm ~1520 nm

Contact Sales

KEY INFO

FEATURES

Only S-band Fiber Amplifier in Market
High Gain and Low NF
Monitoring/Logging/Interlocking Function
RS-232C
SNMP Option

APPLICATIONS

Telecom Network
Datacom Network
Increasing Link Budget
Loss Compensation

SPECIFICATIONS

MAIN SPECS

Product Number	Operating WaveLength (nm)	Nominal WL (nm)	Output Power (dBm) (*1)	Gain (dB) (*2)	Gain Flatness (dB)	NF (dB) (*2)	PER (dB)	IN/OUT Fiber	Standard Connector	IN/OUT Isolator	Std. Dimension (H x W x D, mm) (*3)
AMP-FL8401	847 to 853	850	N/A	≥ 20	N/A	N/A	N/A	HI780	FC/PC	Built In	88 x 260 x 350
AMP-FL8511	975 to 981		≥ +14	≥ 25	N/A	N/A	N/A	HI1060	FC/APC	Output Only	88 x 260 x 350
AMP-FL8521-XB-20	1020 to 1080	1030	≥ +20	≥ 30	N/A	N/A	N/A	HI1060	FC/APC	Output Only	88 x 260 x 350
AMP-FL8611-OB-10	1280 to 1320	1310	≥ +10	≥ 10	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8611-OB-13	1280 to 1320	1310	≥ +13	≥ 15	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8611-OB-16	1280 to 1320	1310	≥ +16	≥ 20	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8611-OB-18	1280 to 1320	1310	≥ +18	≥ 25	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8611-OB-20	1280 to 1320	1310	≥ +20	≥ 35	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 430 x 350
AMP-FL8612-OB-23	1280 to 1320	1310	≥ +23	≥ 35	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 430 x 350
AMP-FL5601-OB-13	1280 to 1320	1310	≥ +13	Typ. 18	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5601-OB-16	1280 to 1320	1310	≥ +16	Typ. 24	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5601-OB-20	1280 to 1320	1310	≥ +20	Typ. 40	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5611-OP-10	1280 to 1320	1310	Typ. +8	≥ 10	N/A	≤ 6.7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5611-OP-15	1280 to 1320	1310	Typ. +10	≥ 15	N/A	≤ 6.7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-GB9600-OB-8	1280 to 1320	1310	≥ +8	≥ 8	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-GB9600-OB-10	1280 to 1320	1310	≥ +10	≥ 10	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-GB9600-OB-13	1280 to 1320	1310	≥ +13	≥ 15	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-GB9600-OB-16	1280 to 1320	1310	≥ +16	≥ 20	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-FL8211-SB-13	1460 to 1500	1480	≥ +13	≥ 15	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8211-SB-16	1460 to 1500	1480	≥ +16	≥ 20	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8211-SB-20	1460 to 1500	1480	≥ +20	≥ 25	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8221-SB-16	1470 to 1520	1490	≥ +16	≥ 25	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8221-SB-19	1470 to 1520	1490	≥ +19	≥ 30	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8221-SB-19-W	1470 to 1520	1490	≥ +19	Typ. 24	≤ 3 (*5)	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8222-SB-18-PM	1470 to 1520	1490	≥ +18	Typ. 24	N/A	≤ 7	≥ 20	PM1550	FC/PC	Built In	88 x 430 x 350
AMP-FL5201-SB-13	1460 to 1500	1480	≥ +13	Typ. 13	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5201-SB-16	1460 to 1500	1480	≥ +16	Typ. 16	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5201-SB-19	1460 to 1500	1480	≥ +20	Typ. 19	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5221-SB-16	1470 to 1520	1490	≥ +16	Typ. 25	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5221-SB-19	1470 to 1520	1490	≥ +19	Typ. 30	N/A	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5221-SB-19-W	1470 to 1520	1490	≥ +19	Typ. 24	≤ 3 (*5)	≤ 7	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-GB9211-SB-13	1460 to 1500	1480	≥ +13	≥ 15	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-GB9211-SB-16	1460 to 1500	1480	≥ +16	≥ 20	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-GB9211-SB-20	1460 to 1500	1480	≥ +20	≥ 25	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-GB9221-SB-16	1470 to 1520	1490	≥ +16	≥ 25	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	35 x 190 x 132
AMP-FL8011-CB-16	1530 to 1560	1550	≥ +16	≥ 30	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8011-CB-19	1530 to 1560	1550	≥ +19	≥ 35	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8011-CB-22	1530 to 1560	1550	≥ +22	≥ 40	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8011-CB-22-W	1530 to 1560	1550	≥ +22	≥ 35	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8013-CB-13	1530 to 1560	1550	≥ +13	≥ 25	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8013-CB-16	1530 to 1560	1550	≥ +16	≥ 30	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8013-CB-19	1530 to 1560	1550	≥ +19	≥ 35	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8013-CB-19-W	1530 to 1560	1550	≥ +19	≥ 30	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL5011-CB-16	1530 to 1560	1550	≥ +16	≥ 30	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5011-CB-19	1530 to 1560	1550	≥ +19	≥ 35	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5011-CB-22	1530 to 1560	1550	≥ +22	≥ 35	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5013-CB-13	1530 to 1560	1550	≥ +13	≥ 25	N/A	≤ 5	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5013-CB-16	1530 to 1560	1550	≥ +16	≥ 30	N/A	≤ 5	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5013-CB-19	1530 to 1560	1550	≥ +19	≥ 35	N/A	≤ 5	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL8015-CB-27	1540 to 1560	1550	≥ +27	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8015-CB-30	1540 to 1560	1550	≥ +30	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8015-CB-33	1540 to 1560	1550	≥ +33	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8015-CB-35	1540 to 1560	1550	≥ +35	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8015-CB-37	1540 to 1560	1550	≥ +37	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8016-CB-PM-27	1540 to 1560	1550	≥ +27	N/A	N/A	≤ 6	≥ 20	PM1550	FC/PC	Built In	88 x 430 x 350
AMP-FL8016-CB-PM-33	1540 to 1560	1550	≥ +33	N/A	N/A	≤ 6	≥ 20	PM1550	FC/PC	Built In	88 x 430 x 350
AMP-GB9011-CB-16	1530 to 1560	1550	≥ +16	≥ 30	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9011-CB-19	1530 to 1560	1550	≥ +19	≥ 35	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9011-CB-22	1530 to 1560	1550	≥ +22	≥ 40	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9013-CB-13	1530 to 1560	1550	≥ +13	≥ 25	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9013-CB-16	1530 to 1560	1550	≥ +16	≥ 30	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9013-CB-19	1530 to 1560	1550	≥ +19	≥ 35	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GBFMSA011-CB-12	1530 to 1560	1550	≥ +12	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 90
AMP-GBFMSA011-CB-20	1530 to 1560	1550	≥ +20	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 90
AMP-GBFMSA011-CP-25	1530 to 1560	1550	N/A	≥ +25	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 90
AMP-GBFMSA011-CP-33	1530 to 1560	1550	N/A	≥ +33	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 90
AMP-GBHMSA011-CB-12	1530 to 1560	1550	≥ +12	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 45
AMP-GBHMSA011-CB-13	1530 to 1560	1550	≥ +13	N/A	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 45
AMP-GBHMSA011-CP-25	1530 to 1560	1550	N/A	≥ +25	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 45
AMP-GBHMSA011-CP-27	1530 to 1560	1550	N/A	≥ +27	N/A	≤ 5	N/A	SMF (*4)	FC/PC	Built In	12 x 70 x 45
AMP-FL8001-LB-13	1560 to 1610	1580	≥ +13	≥ 25	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8001-LB-16	1560 to 1610	1580	≥ +16	≥ 30	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8001-LB-19	1560 to 1610	1580	≥ +19	≥ 35	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8001-LB-22	1560 to 1610	1580	≥ +22	≥ 35	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL5001-LB-13	1560 to 1610	1580	≥ +13	≥ 25	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5001-LB-16	1560 to 1610	1580	≥ +16	≥ 30	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5001-LB-19	1560 to 1610	1580	≥ +19	≥ 35	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL5001-LB-22	1560 to 1610	1580	≥ +22	≥ 35	N/A	≤ 6	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
AMP-FL8005-LB-27	1575 to 1605	1580	≥ +27	N/A	N/A	≤ 7	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8005-LB-30	1575 to 1605	1580	≥ +30	N/A	N/A	≤ 7	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8005-LB-33	1575 to 1605	1580	≥ +33	N/A	N/A	≤ 7	N/A	SMF (*4)	FC/APC	Built In	88 x 430 x 350
AMP-FL8031-XLB-18	1560 to 1620	1620	≥ +18	≥ 20	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-GB9001-LB-13	1560 to 1610	1580	≥ +13	≥ 25	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9001-LB-16	1560 to 1610	1580	≥ +16	≥ 30	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-GB9001-LB-19	1560 to 1610	1580	≥ +19	≥ 35	N/A	≤ 6	N/A	SMF (*4)	FC/PC	Built In	18 x 120 x 90
AMP-FL8021-CLB-13	1530 to 1560 1570 to 1610	1550 1580	≥ +13	≥ 25	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8021-CLB-16	1530 to 1560 1570 to 1610	1550 1580	≥ +16	≥ 30	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8021-CLB-19	1530 to 1560 1570 to 1610	1550 1580	≥ +19	≥ 35	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 260 x 350
AMP-FL8021-CLB-22	1530 to 1560 1570 to 1610	1550 1580	≥ +22	≥ 35	N/A	≤ 7	N/A	SMF (*4)	FC/PC	Built In	88 x 430 x 350
5701-B8	1471 ± 6.5 1491 ± 6.5 1511 ± 6.5 1531 ± 6.5 1551 ± 6.5 1571 ± 6.5 1591 ± 6.5 1611 ± 6.5	1471 1491 1511 1531 1551 1571 1591 1611		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	88 x 440 x 403
5701-I8	1471 ± 6.5 1491 ± 6.5 1511 ± 6.5 1531 ± 6.5 1551 ± 6.5 1571 ± 6.5 1591 ± 6.5 1611 ± 6.5	1471 1491 1511 1531 1551 1571 1591 1611		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	88 x 440 x 403
5701-B4	1531 ± 6.5 1551 ± 6.5 1571 ± 6.5 1591 ± 6.5	1531 1551 1571 1591		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
5701-I4	1531 ± 6.5 1551 ± 6.5 1571 ± 6.5 1591 ± 6.5	1531 1551 1571 1591		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
5711-B4S	1471 ± 6.5 1491 ± 6.5 1511 ± 6.5 1531 ± 6.5	1471 1491 1511 1531		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
5711-B4L	1551 ± 6.5 1571 ± 6.5 1591 ± 6.5 1611 ± 6.5	1551 1571 1591 1611		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
5711-I4S	1471 ± 6.5 1491 ± 6.5 1511 ± 6.5 1531 ± 6.5	1471 1491 1511 1531		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403
5711-I4L	1551 ± 6.5 1571 ± 6.5 1591 ± 6.5 1611 ± 6.5	1551 1571 1591 1611		N/A	N/A	N/A	N/A	SMF (*4)	SC/PC	Built In	43 x 440 x 403

(*1) Input Power: 0 dBm @ Nominal Wavelength
(*2) Input Power: -30 dBm @ Nominal Wavelength
(*3) Does not include protrusions
(*4) G.652 compliant (e.g. SMF28)
(*5) Defined by gain difference of 1471 and 1511 nm, when signals at 1471, 1491, 1511nm are launched at 0 dBm/ch input

OTHER SPECS

Attribute	Specification
Control Mode	ACC (Auto Current Control) and ALC (Auto Light Control)
Control Mode	ACC (Auto Current Control) or APC (Auto Power Control)
Control Mode	ACC (Auto Current Control)
Monitor & Alarm	Output power / Pump LD current / Pump LD temperature / Case temperature
Monitor & Alarm	Input power / Output power / Pump LD current / Pump LD temperature / Case temperature
Monitor & Alarm	Input power / Output power / Return power / Pump LD current / Pump LD temperature / Case temperature
Monitor & Alarm	Input power / Output power / Pump LD current / Pump LD temperature / Case temperature / Power-Supply-Unit voltage (alarm only) / Fan Rotation (alarm only)
Monitor & Alarm	Input power / Output power / Pump LD current / Pump LD temperature /
Monitor & Alarm	Output power / Pump LD current / Pump LD temperature
Monitor & Alarm	Output power / Device current / Device temperature
Safety Function	Remote Interlock
Safety Function	Remote Interlock / Interlock with input Alarm
Safety Function	Interlock with input level Alarm
Safety Function	Remote Interlock / Interlock with Input Alarm / Interlock with Return Alarm
Safety Function	Pump LD shutdown (LDSD)
Remote Interface	RS-232C / IEEE488.1 (GP-IB)
Remote Interface	RS-232C / Relay terminal for alarm
Temperature	Operation : 0 to 40 ºC / Storage : -10 to 60 ºC
Temperature	Operation : 0 to 60 ºC / Storage : -10 to 70 ºC
Power Supply	AC 100 to 240 V (50/60 Hz)
Power Supply	AC 100 to 240 V (50/60 Hz), Redundant and Hot-Swap
Power Supply	DC 5 V
Power Supply	DC 5.1 ~ 5.4 V
Humidity	5 to 80 % RH (non-condensing)
Other Environmental Conditions	Indoor use / Overvoltage category: II / Altitude:
Safety Standards	IEC 60825-1 (JIS C 6802) / CE marking (EN 61010-1 / EN 61326-1)

Options

Number	Option
-011	FC/PC Connector
-012	FC/APC Connector
-013	SC/PC Connector
-014	SC/APC Connector
-019	Other Cusomized Connector
-023	DC 48V Hot Swap Power Supply
-029	Other Cusomized Power Supply
-031	Gain Block temperature monitor
-031	Spectral flattening
-041	Polarized Output
-061	Adjustable Output
-062	Including output isolator (1020 only)
-072	1030-nm Input Isolator
-081	Optical Attenuator (Output Power spec: -1 dB)
-081	No Attenuator and Power Monitor
-082	Narrow Bandwidth (0.1-1.0 nm, Gaussian)
-083	Narrow Bandwidth (1.0-2.0 nm, Flat-Top)
-091	Input Monitor and Interlock
-091	Input Monitor and Interlock (NF spec: +0.5 dB)
-092	Ethernet Interface
-093	Reflection Monitor and Interlock
-102	Control Software for adjustment
-111	Evaluation Board (RS-232C level converter)
-121	Rack-mount kit Size: 88(H)x440(W)x350(D) mm
-122	Rack-mount kit Size: 88(H)x260(W)x350(D) mm
-123	Rack-mount kit Size: 88(H)x440(W)x350(D) mm
-141	Optical Power Control (ACC or APC)
-141	Optical Power Control (ACC)
-142	Pulse Modulation (1~1,000 Hz)
-151	Front Control Panel and Display
